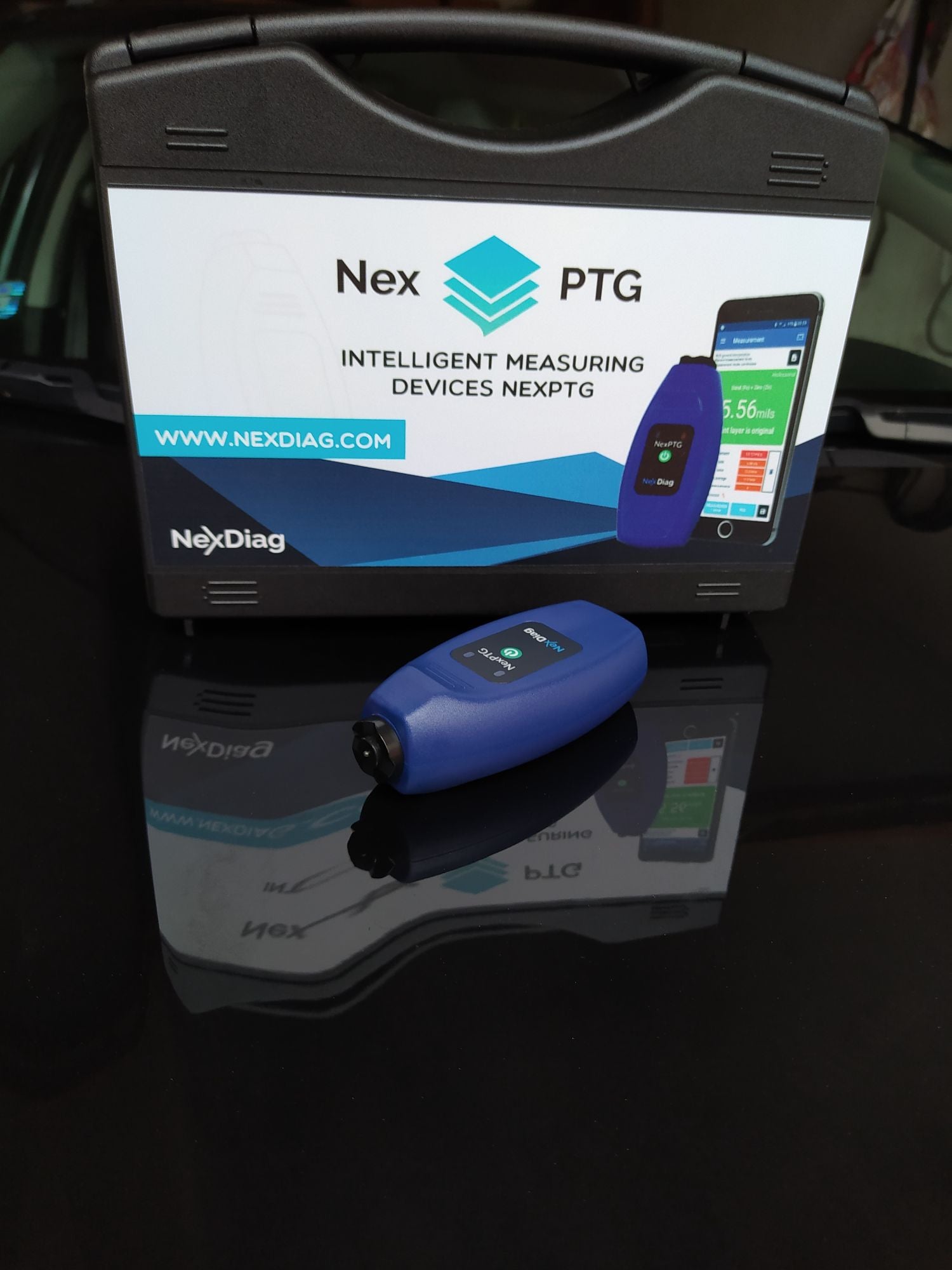

NexPTG Professional Paint Thickness Gauge

Name: NexPTG Professional Paint Thickness Gauge
Brand: MacoLAy Enterprise
SKU: NexPTG-Professional
Price: 17500.00 PHP
Availability: InStock

₱17,500.00 PHP

~~₱0.00 PHP~~ ₱17,500.00 PHP

Sale Sold out

Quantity

NexPTG devices are the most innovative wireless thickness gauges on the market. NexPTG devices perform 10 measurements per second and show very precise readings, what is more, it can be used to check virtually any car. NexPTG automatically recognizes and tests the lacquer coating on steel and aluminium elements.

An advanced version of the NexPTG lacquer thickness gauge, which enables fast, accurate and intuitive vehicle testing. The Professional version has a movable head allowing for precise measurements on concave and convex elements.

Testing substrate: Steel [Fe] / Zinc-plated steel [Fe+Zn] / Aluminum [Al]
Recognized substrate types: [Fe] / [Fe+Zn] / [Al]
Range of measurement: 0 - 2500 μm (0 – 98.43 mils)

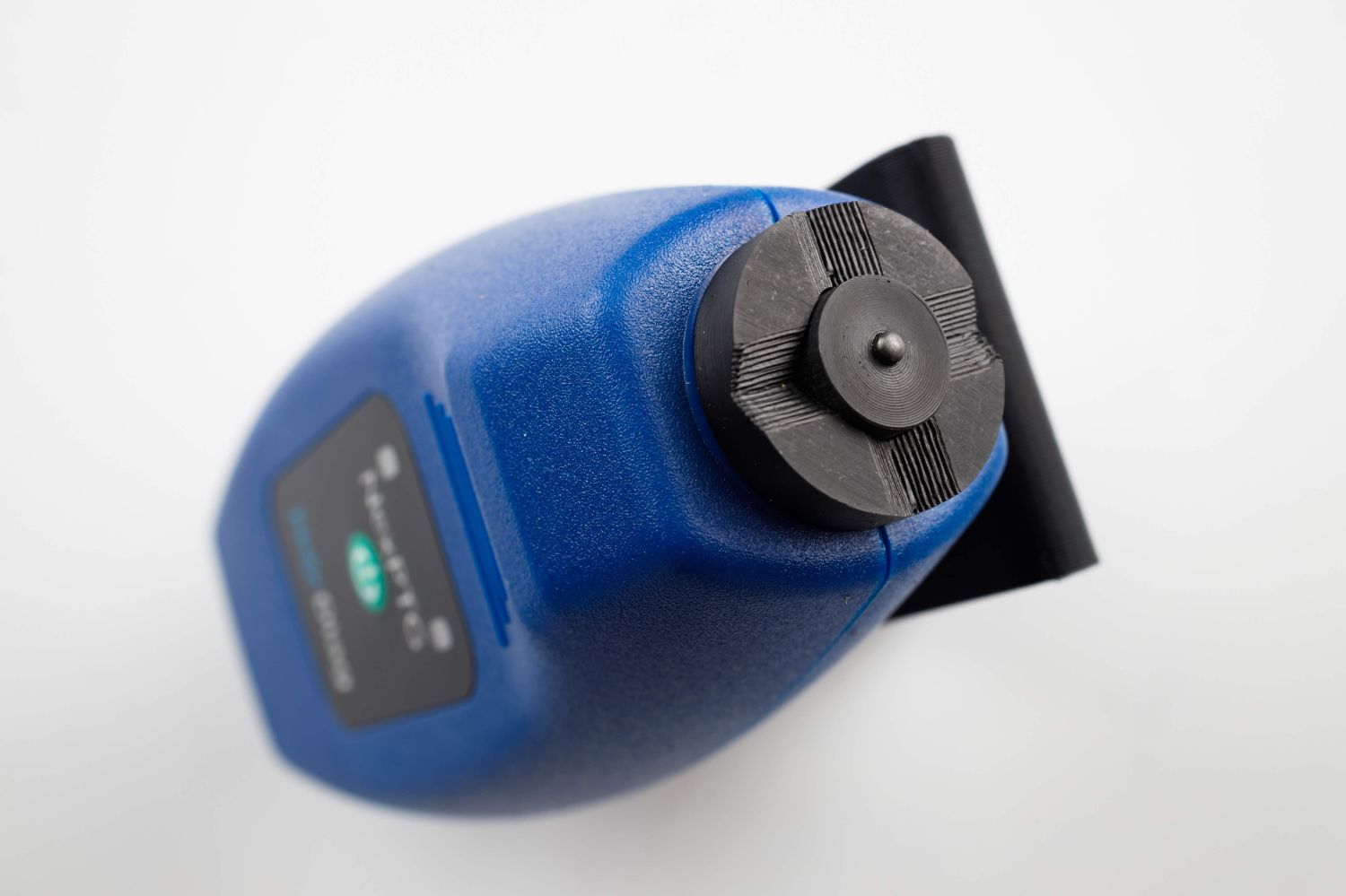

Type of probe / End of probe: movable/spherical
Possible measurement on curvatures (profiled probe housing)
Resolution of measurement: 1 μm (0.04 mils)
Measurement memory: up to 4000 items
Wireless transmission: Bluetooth 4.0 LE

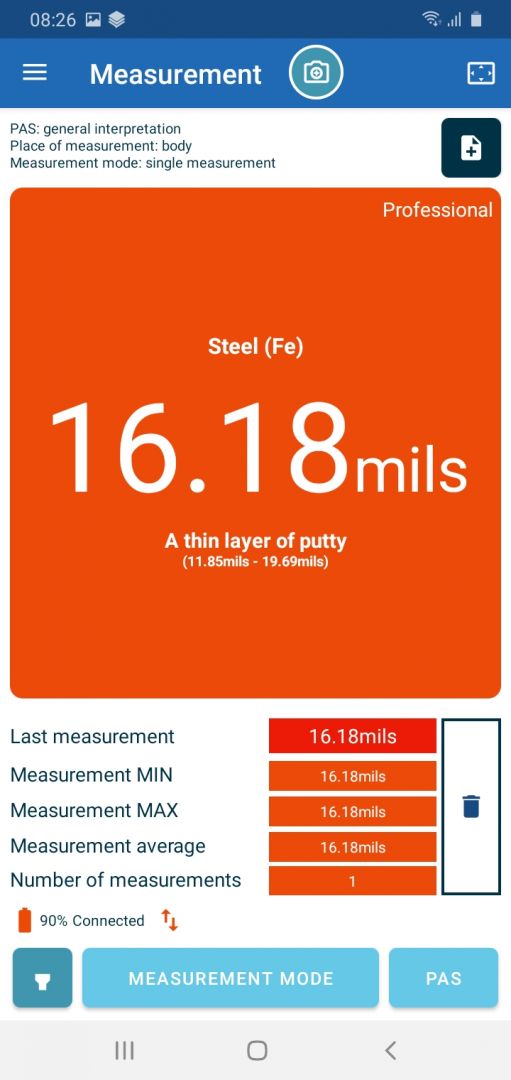

SAPL Extended: lacquer coating analysis system

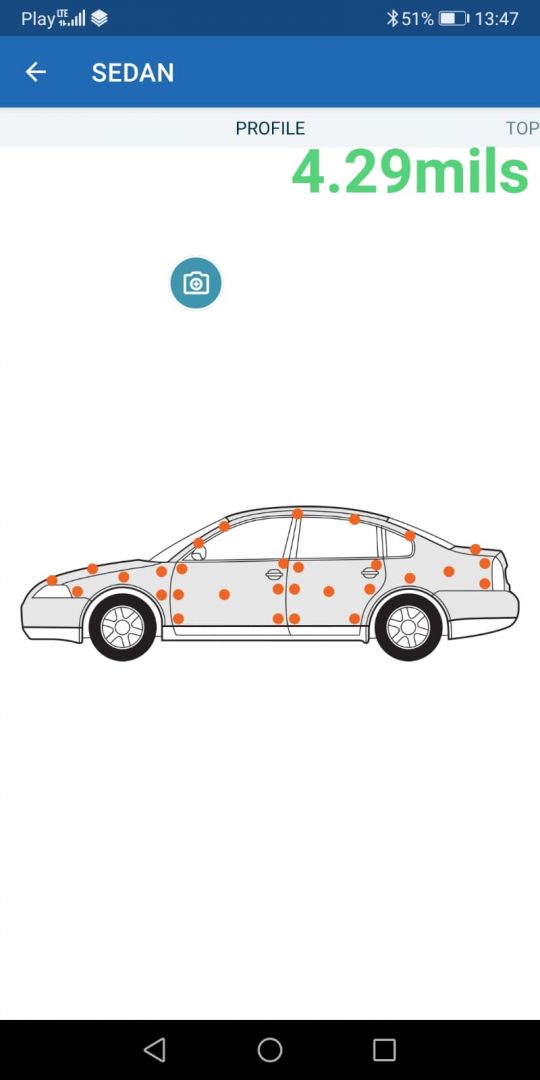

Suggested measurement points

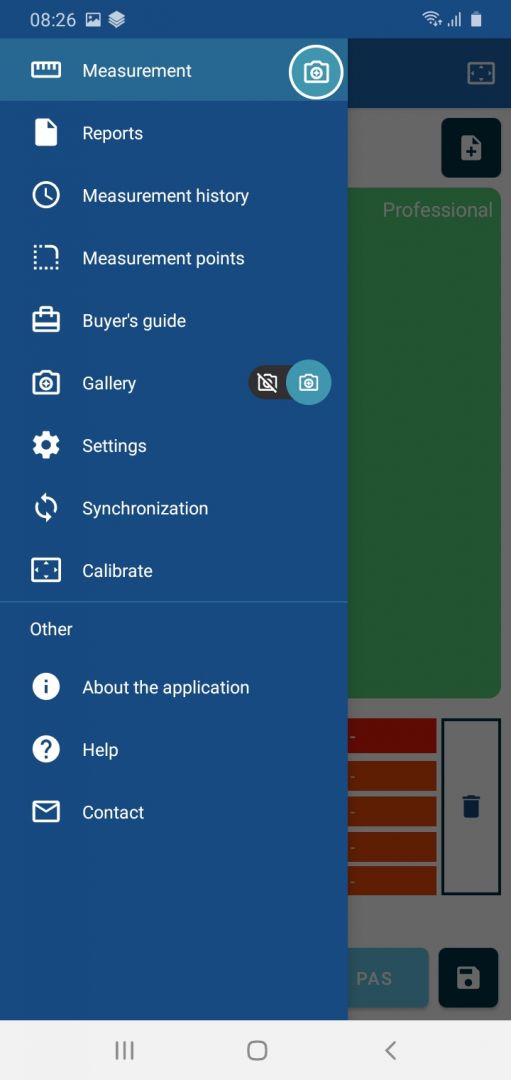

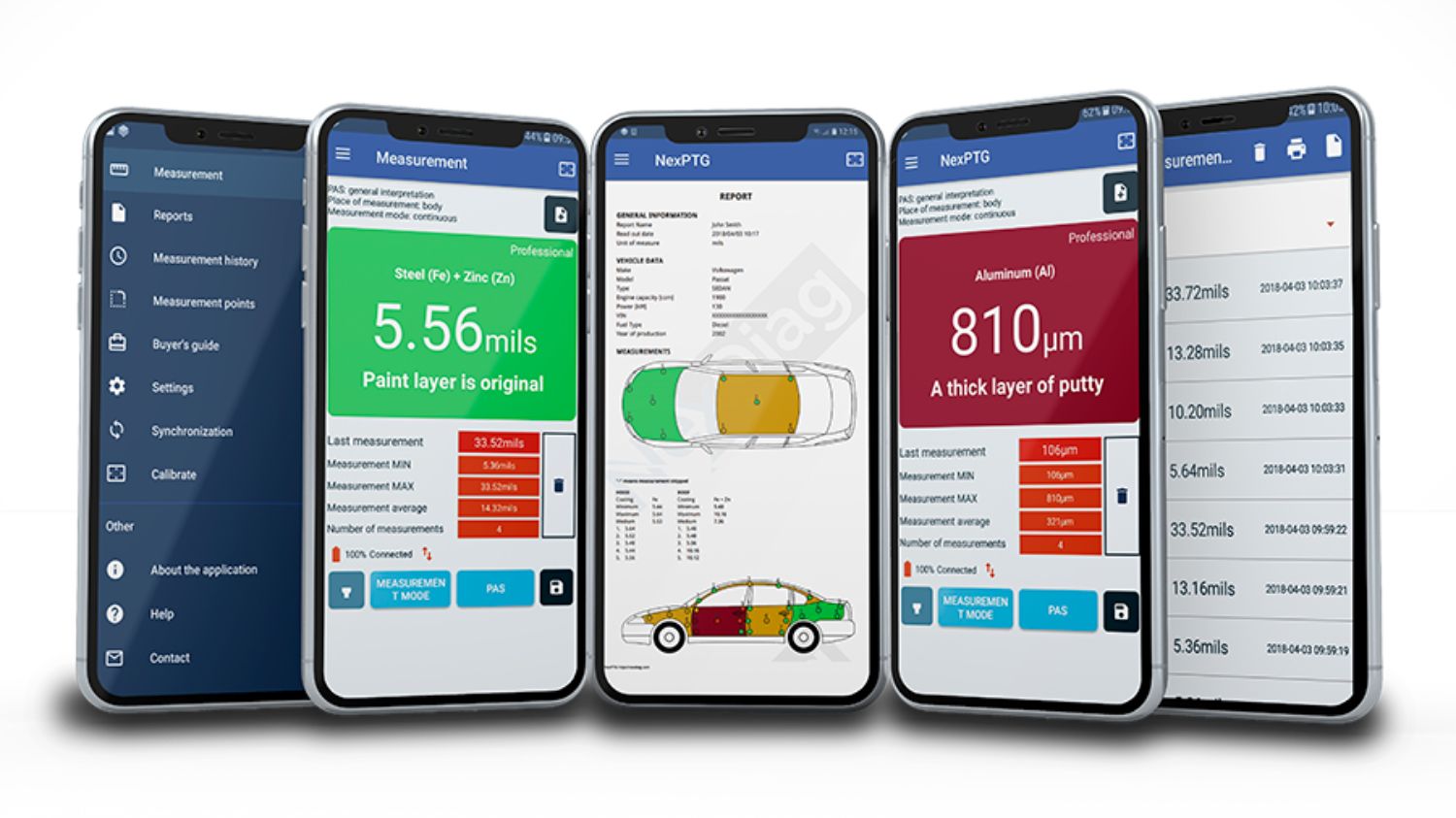

Creation and export of measurement history

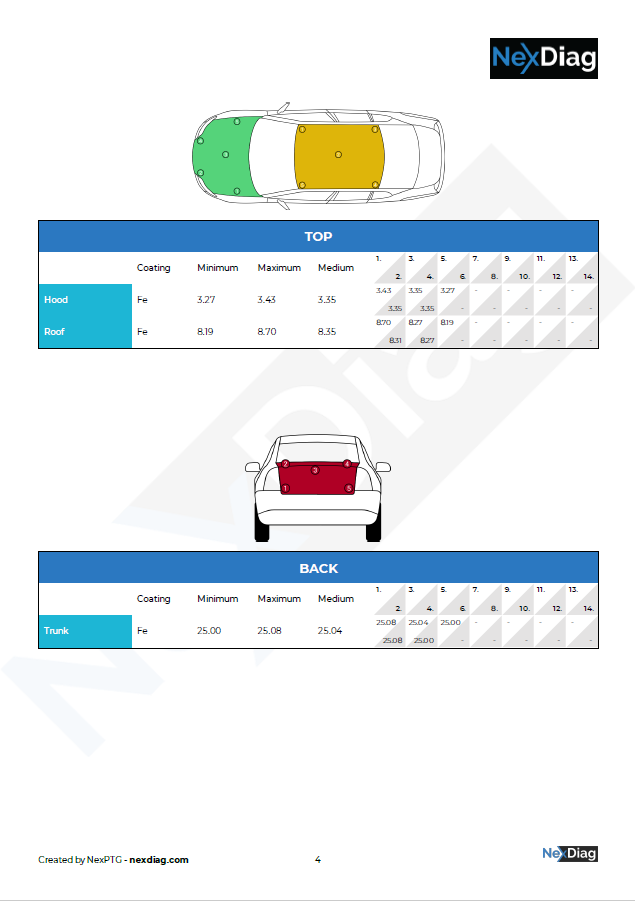

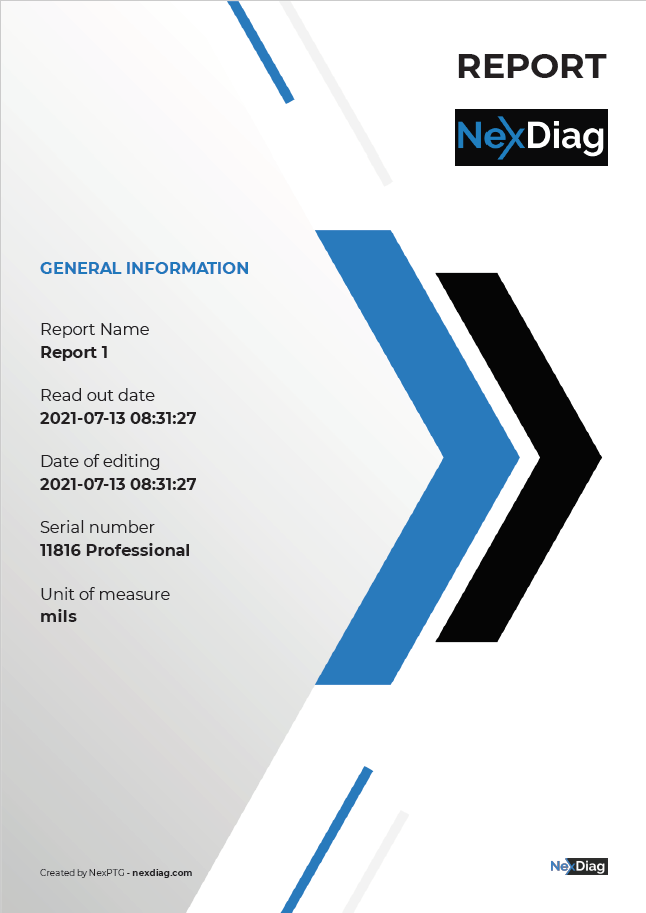

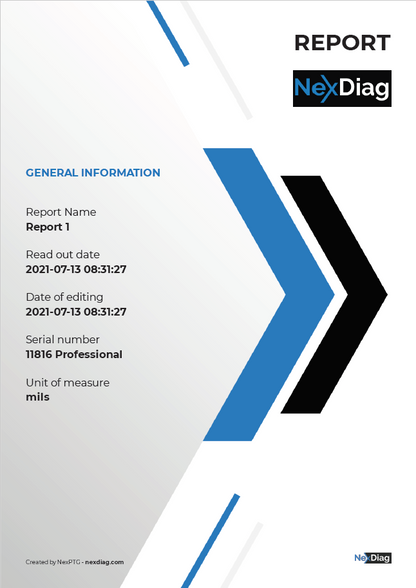

Creation and export of reports
API communication
Supported systems: iOS / Android

NexPTG Professional is an effective and easy-to-use gauges that allows you to make measurements quickly and accurately. In addition, the gauge has a number of additional innovative options that will help the user to examine the vehicle more easily and efficiently.

The NexPTG Professional is the most advanced model of the gauge, allowing you to make precise measurements including on curved surfaces.

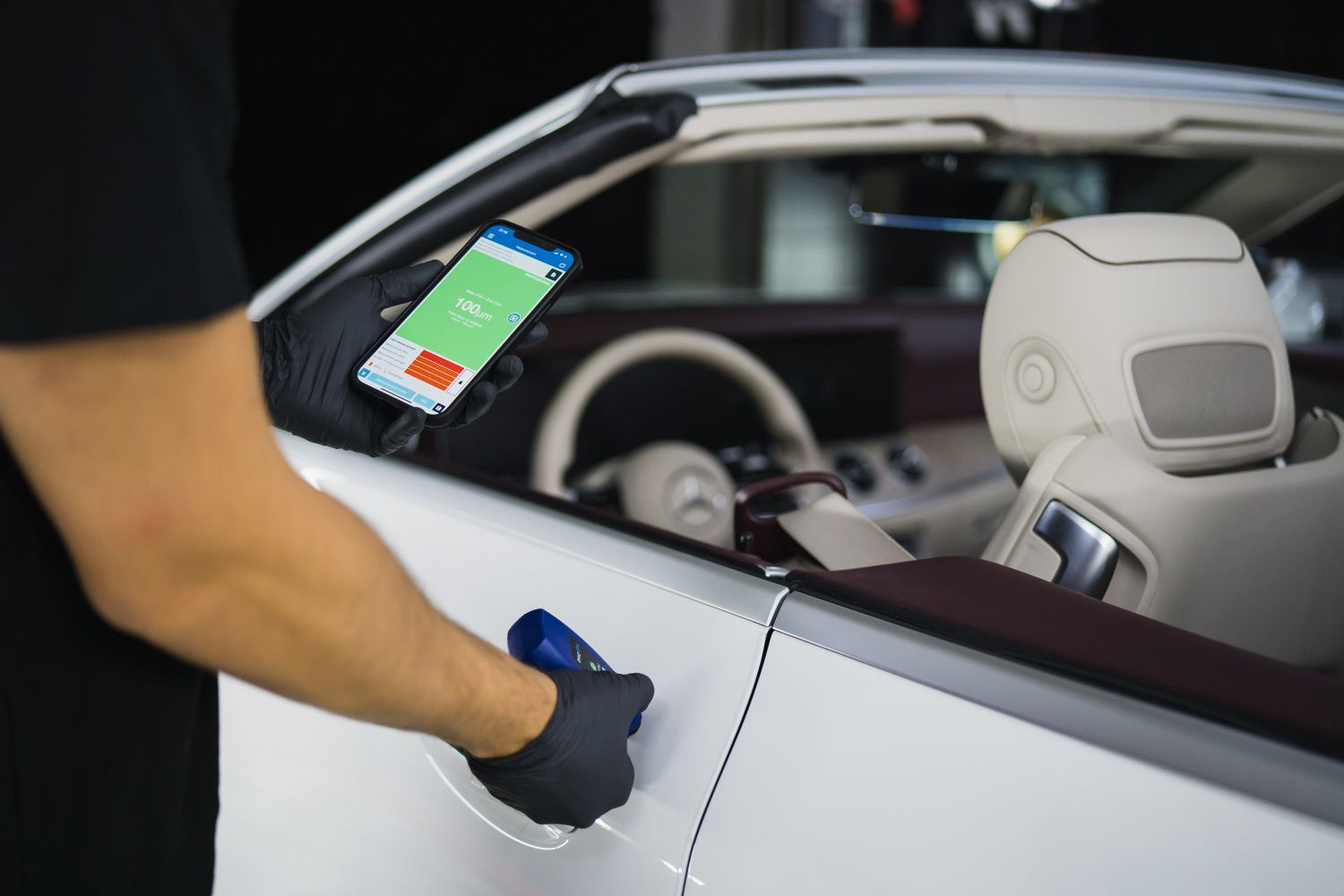

Thanks to the use of a movable head and a profiled probe housing, in the device, the effect of vibrations on reading measurements on convex or concave internal and external elements of a vehicle has been eliminated. Thanks to the combination of the gauge and a telephone, the user receives enormous possibilities unattainable for traditional gauges.

The Professional version makes measurements with even greater accuracy than the Standard and Advanced versions. In addition, the Professional gauge has a number of options that will help the user to examine a vehicle more efficiently and more effectively, including:
