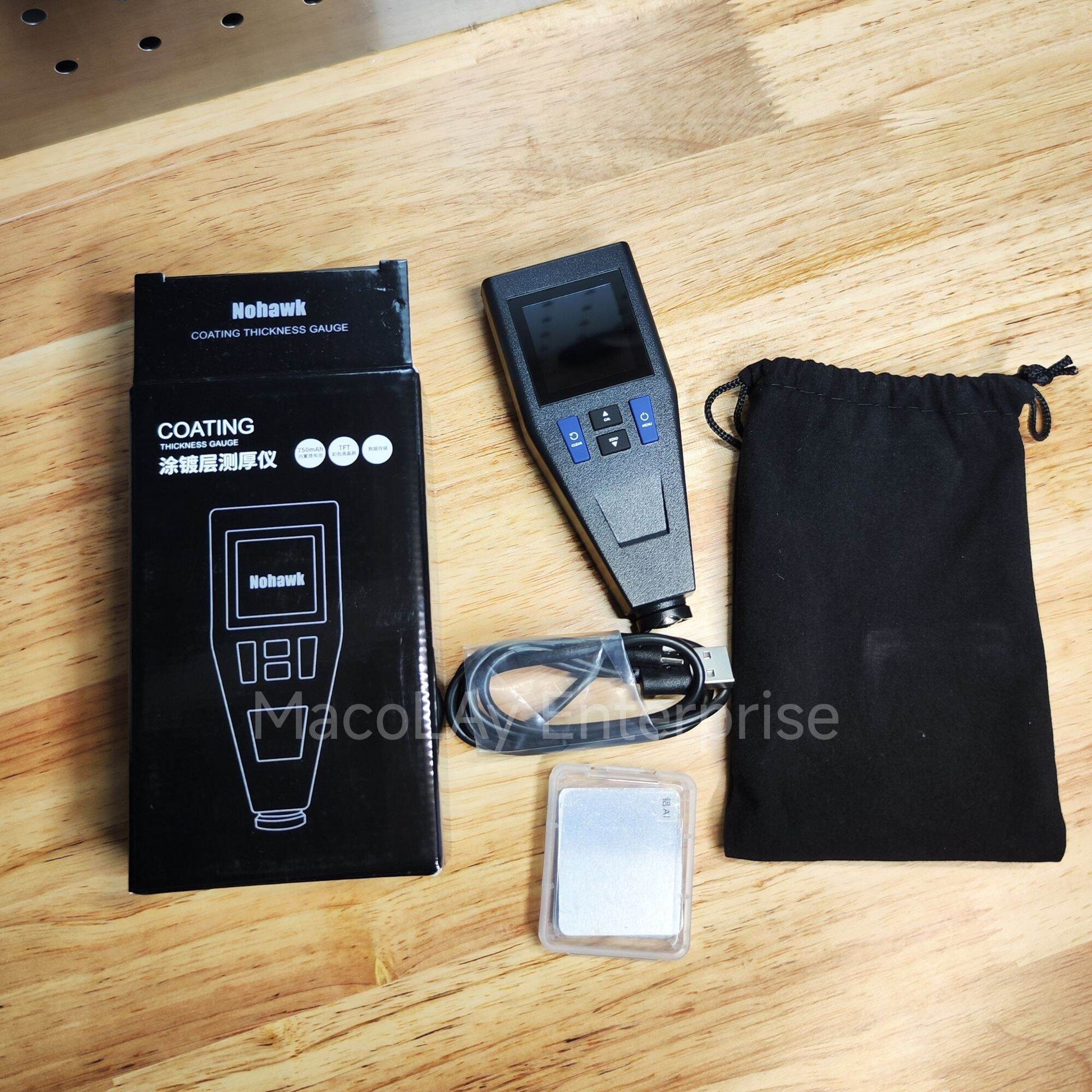

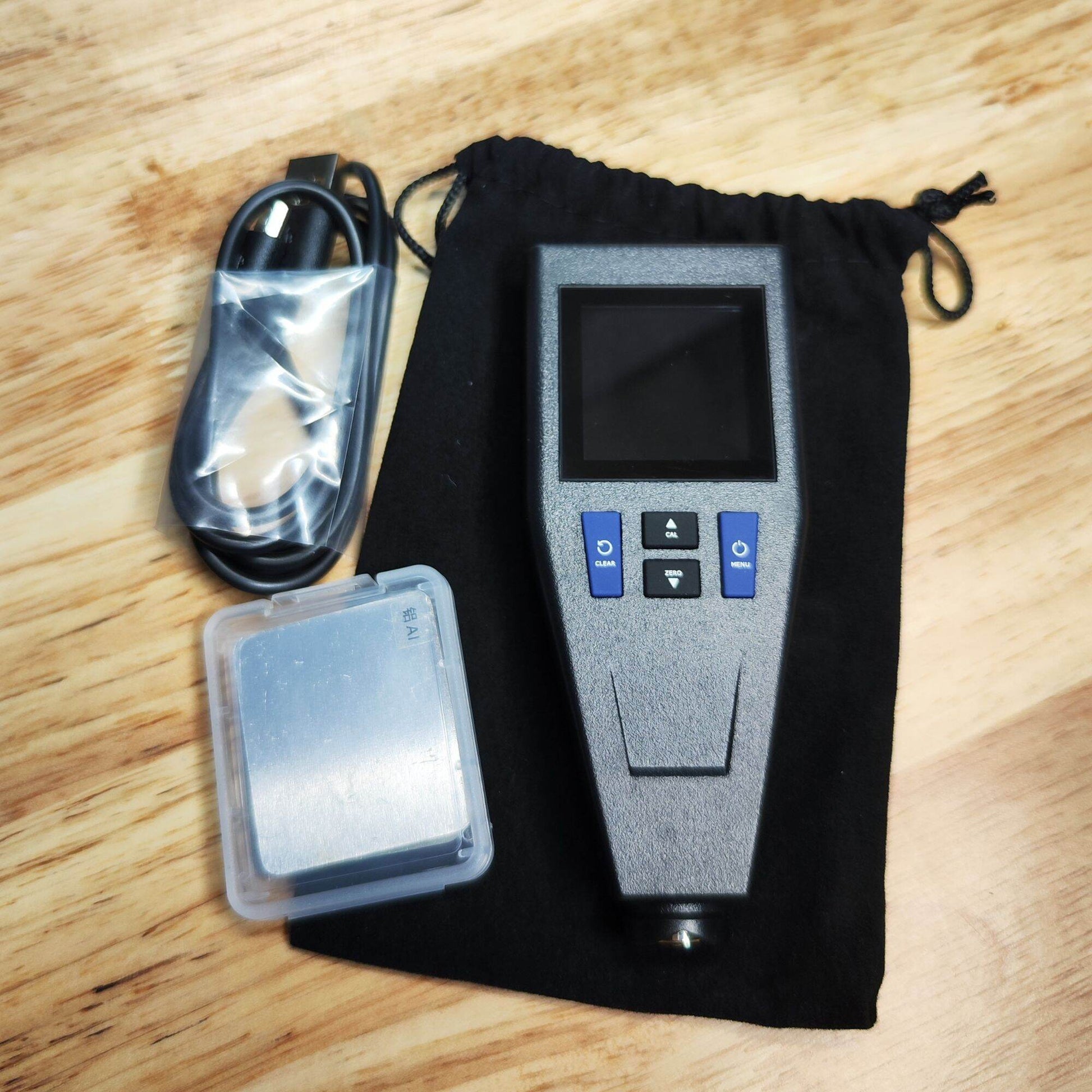

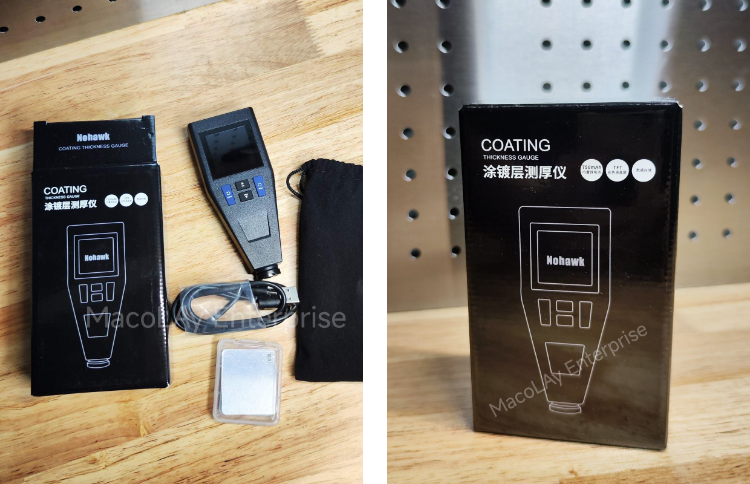

• Package Include:
• 1 X Coating Thickness Gauge
• 1 X Iron Clibration Substrate
• 1 X Aluminum Clibration Substrate
• 1 X English User Guide and Certificate
• 1 X Protective Pouch

• Measurement Range: 0-2000um
• Unit: um, mm, mils
• Error: ±(2.5%+2um)
• Display accuracy: 0.1um(0-99.9um); 1um( ≥100um)



Features:

 Two measurement method, magnetic induction for magnetic substrates such as iron and steel; eddy current method for substrates such as brass, aluminum, zinc etc. ;

Highly sensitive probe, automatically identify the substrates

Three measurement modes, single measurement, continuous measurement, fast continuous measurement;

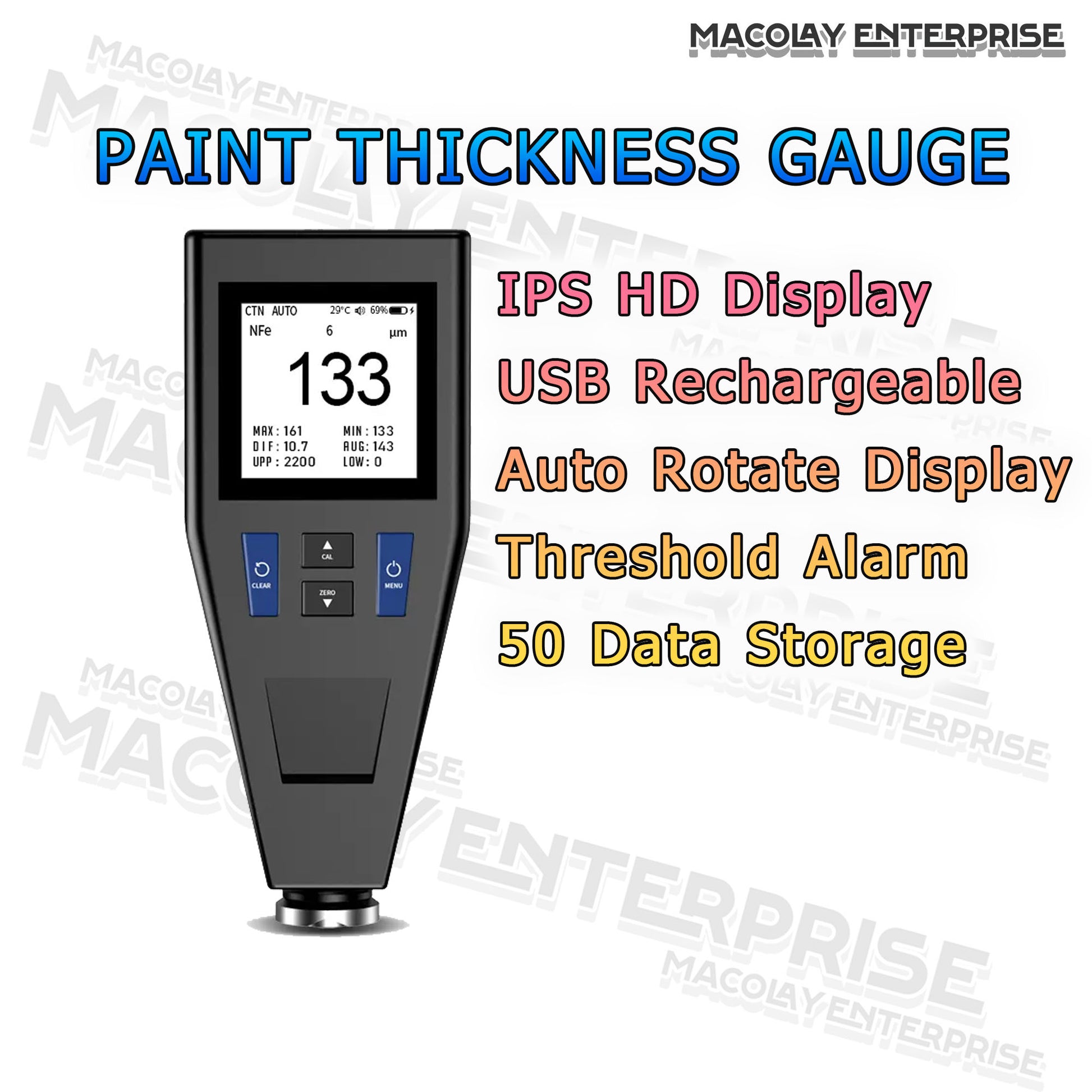

 IPS High-definition large color screen with clear and easy reading, more settings of brightness, color, screen rotation;

Auto-rotate display * Built-in lithium battery 750maH, USB direct charging, eco-friendly and durable; * Multiple calibration modes (automatic probe calibration, manual zero calibration, manual multiple points calibration), better decreasing the measurement errors and secure the accurate measurement; * 2Second fast switch on, 50 data can be stored; high and low alarm value can be set;

The thickness gauge is used to measure the thickness of the plated and coated sheet on metal, e.g. paint/enamel/ chrome on steel, paint and anodizing coating on aluminum/copper. The gauge takes the precision integrated probe, and uses principles of electro-magnetic induction and the eddy current effect, which automatically detects the attribute of substrates. Application Field: The Gauge is designed for non-destructively measuring the thickness of coating and painting. It is essential for material surface treatment and widely used in manufacturing industry, metal-processing industry, chemical industry, commodity inspection area, and also able to work steadily in the laboratory, workshop and outdoor. Operating Principle: The gauge adopts the principle of electromagnetic induction and eddy current effect. It has F probe and N probe. F probe works on the magnetic induction principle and should be used for detecting the non-magnetic coating’s thickness such as chrome/copper/zinc/varnish/rubber on the iron/steel substrate. N probe works on the eddy current principle and should be used for detecting the insulating coating’s thickness such as paint/anodizing/ceramics on the aluminum/copper/brass substrate
